Cable Assembly

  • Turnkey solutions
    For Hirschmann, Kostal, Rosenberger and other connectors, we already have turnkey solutions for various processes in our portfolio.
  • Special-Machine engineeringIn addition to our standard products, we develop special machines according to your requirements and degree of automation.

FAS: Final Assembly Station (for Hirschmann Connectors)

These machines are used for the final assembly of Hirschmann connectors according to processing specifications. The machines are designed for a simple, precise and reliable assembly of the connector parts. All connector types of the Hirschmann HPS series can be assembled with various tool inserts. On request, other steps or plugs can also be realized.

Highlights unserer FAS Vorrichtungen:

  • Precise and safe assembly
  • Easy change of plug types
  • Elimination of tolerances with well-engineered pressing system
  • Plain and corrosion-resistant surface of the fixture parts
  • Quality and service from Austria


FAS3- M: Final Assembly Station Gen.3 Manual

With the FAS3-M, the assembly of the HPS connectors can be realized quickly and easily.


Details:

  • Manual pressing by rack and pinion principle
  • Manual adjustment of any pressing depths
  • Easy tool change in just 3 steps
  • Compact shape and variable mounting locations (horizontal or vertical)
  • Tolerance elimination of the plugs by initial stroke
  • Backstroke barrier for high process reliability
  • Universal tool inserts that can also be used with the FAS1-E

More details:

Download
Datenblatt FAS 3-M
FAS 3-M Datenblatt.pdf
Adobe Acrobat Dokument 268.6 KB

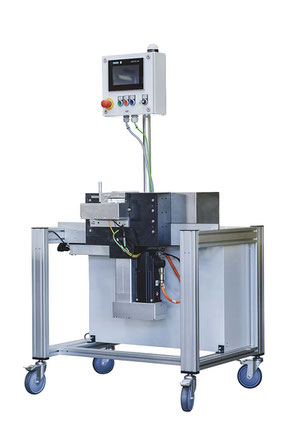

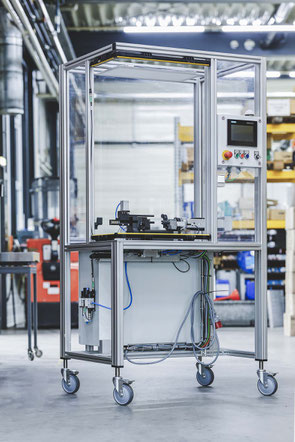

FAS1-E: Final Assembly Station 1. Gen Electric

The FAS1-E is the new generation of the Final Assembling Station. The device presses automatically and has an integrated measuring system. Perfect for serial production with monitoring of all assembly parameters.


Details:

  • Automatic pressing with position and force monitoring
  • Automatic measurement according to the desired interval
  • Easy tool change in just 4 steps
  • Universal tool inserts that can also be used with the FAS3-M
  • Height-adjustable workstation with lighting
  • Safe workplace thanks to light curtains



Further details can be found in the FAS1-E data sheet.

Download
Datenblatt FAS1-E+M
FAS1-E+M_Datenblatt.pdf
Adobe Acrobat Dokument 317.5 KB


SSC: Shield Sleeve Crimping Station

Our SSC machines are used for crimping the shielding sleeve onto the contact carrier of Hirschmann connectors according to the processing specification. The machines are designed for safe, accurate and gentle crimping of the shield sleeves. Many connector types of the Hirschmann HPS series can be crimped with different tool inserts. On request, other steps or plugs can also be realized.

Highlights of our SSC fixtures:

  • Accurate and reliable crimping
  • Gentle way of crimping
  • Easy handling of cable assemblies
  • Secure process
  • Quality and service from Austria





SSC1-P: Shield Sleeve Crimping Station 1. Gen Pneumatic

The SSC1-P can be used to crimp the HPS40-1 connector. The device works with 2 start-up stations and is driven pneumatically.


Details:

  • Pneumatic, gentle crimping
  • Easy handling
  • All cable diameters possible
  • All contact carrier types of the HPS40-1 possible
  • Safe Workplace

All details about our SSC1-P on request.

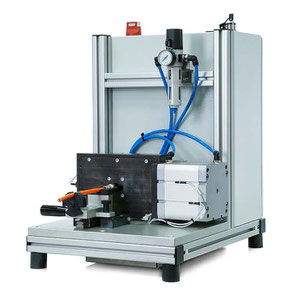

SSC2-P: Shield Sleeve Crimping Station 2. Gen Pneumatic

With the SSC2-P, Crimping the shield sleeve can be done easily and safely. The pneumatic operation via a sliding mechanism ensures gentle crimping.


Details:

  • Pneumatic and therefore gentle operation
  • Easy handling and operation
  • Cable diameters up to 6mm² possible
  • Tool inserts for connector types HPS40-2 and HPS40-2+*
  • Safe Workplace

* On request for other connector types, additional tool inserts can be developed or advice on suitable fixtures can be offered.



SSC1-E

Coming soon
